Chart to show absence of transactions

Hi folks

Is there a way to create a chart to show the absence of APM transactions?

Something like the sql group by and having clause…

SELECT count(*) as qty FROM Transaction FACET name WHERE appName = ‘appname’ AND name = ‘OtherTransaction/Task/transaction’ SINCE 6 HOURS AGO TIMESERIES HAVING qty = 0

Hi, @luis.henrique2: You want a list of transactions with 0 throughput? Try this:

SELECT qty, appName, name
FROM (
  SELECT count(*) AS qty
  FROM Transaction
  FACET appName, name
) WHERE qty = 0

Hi @philweber , thanks for the tip.

I would like an easy way to see which transactions have not happened in a given period.

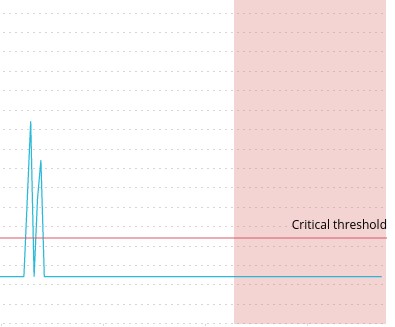

Something similar to the feature that exists when creating an alert condition, in which a graph is displayed with clear information about the absence of a transaction, for example.

Screenshot_2021-04-30_20-48-34

I was not able to use exactly the suggestion you indicated, but removing the FACET and including the name of the transaction in Where Clause, I was able to at least display the result in a table, but it was not possible to use timeseries.

SELECT qty
FROM (
  SELECT count(*) AS qty
  FROM Transaction
  WHERE name = 'transaction_name'
) WHERE qty = 0 SINCE 60 MINUTES AGO

I imagine that this has something to do with Null/zero value in the “absence of transactions”, as described here: Relic Solution: How Can I Figure Out When To Use Gap Filling and Loss of Signal?

I don’t know if it is possible to generate a time series chart showing transactions whose throughput was 0 at any point during a time window. WHERE qty = 0 will select transactions whose throughput was 0 for the entire time window.
